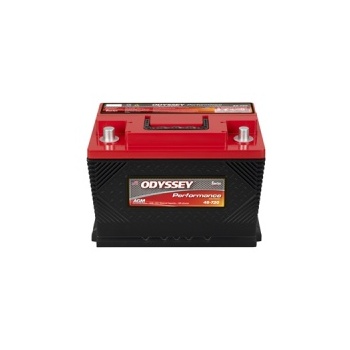

Odyssey PS48-720 ODP-AGM48 H6 L3

NZD789,00 each Weight: 21.8 kg
Width: 174.2 mm
Length: 277.1 mm
Height: 190.9 mm

BCI Group 48 - this battery replaces the previous model PC1220 or PC1220F as used by Ferrari

Pulse Hot Cranking Amps	Cold Cranking Amps	Hot Cranking Amps	Marine Cranking Amps	Nm max torque on terminal	mΩ Internal Resistance	Short Circuit Current
1250	723	950	842	6.8	2.8	2300

69Ah @ 20hr rate - that's 3.45A for 20 hours until the battery voltage is 10.5V
63Ah @ 10hr rate - that's 6.3A for 10 hours until the battery voltage is 10.5V

Reserve Capacity 130 minutes at 25A discharge

Automotive Terminals are non-removable on this model of Odyssey Battery.

Related products

PRODUCT CODE UPDATES

We have seen substantial growth in the range of Odyssey batteries (from EnerSys), with this development we have seen both an increase in the products available but also a change in the product codes and the marketing segmentation.

As an example, here in New Zealand, we originally only imported the PC680MJT model (Metal Jacket and Terminals) it was commonly referred to as PC680 battery. Later we offered these model batteries without the MJT, as being popular with the Aviation industry and imported Aircraft industry. The same has happened with the PC925 variations.

Many models included the Extreme Series tagline, Performance Series, or PowerSport to help define applications, but people use batteries for so many applications this description wasn't enough. With the introduction of new BCI sizes like the 48-720 with traditional housings and mounting feet wedges for OEM installations and DIN sizes.

So, to give you the most up-to-date information on the changes to the battery identifiers now, please review the following information to help you understand these changes.
However, if you have any question’s please feel free to contact us.

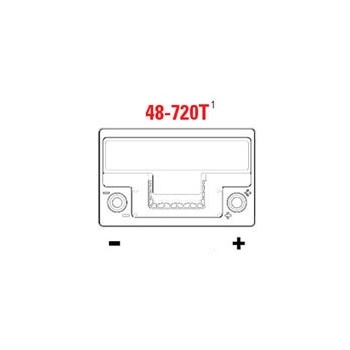

Odyssey models - Product codes and Polarity
