Odyssey PC925LMJ ODS-AGM28MJ

pc925lmj
pc925lmjpc925l
$765.00 each Weight: 11.8 kg
Width: 179.1 mm
Length: 168.7 mm
Height: 148.1 mm

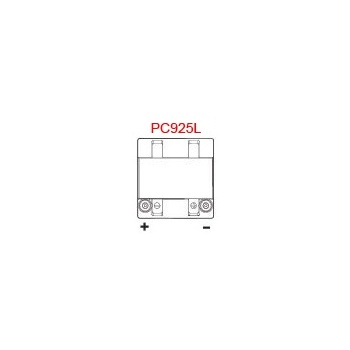

PC925LMJ has the Positive terminal in the non-standard position and has the metal jacket.

Pulse
Amps
Cold
Cranking
Amps
Hot
Cranking
Amps
Marine
Cranking
Amps
Nm max
torque on
terminal
mΩ
Internal
Resistance
Short
Circuit
Current
900 330 610 480 6.8 5 2400

28Ah @ 20hr rate - that's 1.4A for 20 hours until the battery voltage is 10.5V

27Ah @ 10hr rate - that's 2.7A for 10 hours until the battery voltage is 10.5V

Reserve Capacity 48 minutes at 25A discharge



Automotive Terminals are available at the time of purchase for this model for $15.

Terminal Features include:
Encapsulated M6 bolt fastened using an M5 Allen key
Coarse thread Heli-coil inserts and bolt supplied so you can fasten large eyelets to the top of the terminal like a marine or dual purpose terminal

Adding terminals to this battery will make it a PC925LMJT
